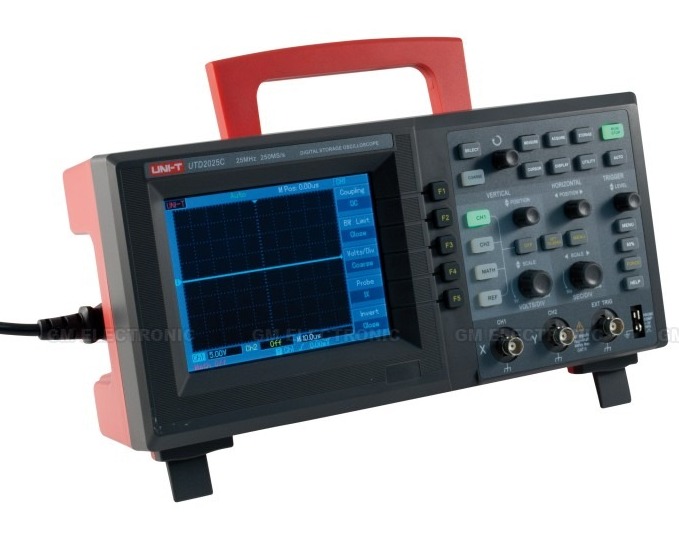

osciloskop dvoukanalovy 25mhz uni t hc ut2025c obrazek 1

UT2025C, digital storage oscilloscope 25 MHz 250MS/s, UNI-T



Bandwidth: 25 MHz
Rise Time: ≤14 ns
Sample Range: 250MS/s
Vertical Sensitivity: 2mV ~ 10V/div
Record Length (Max): 1024k
Sample Rate: 250MS/s
Scan Time Base:  20ns ~ 50s/div
Trigger Type: Edge, Pulse, Video and Alternate

Ports Standard: USB Device, USB Host; RS-232C, Optional: LAN

LCD Size: Diagonal 145mm (5.7 inches)
