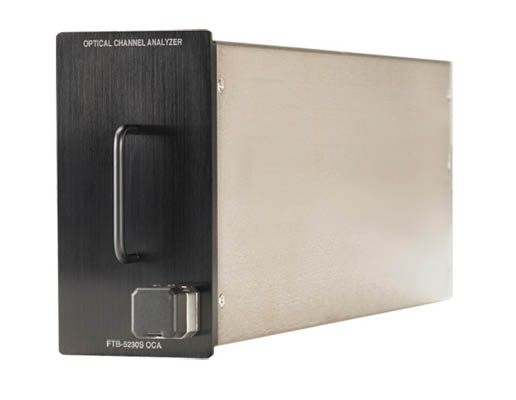

FTB-5230, Optical spectrum analyzer 1250 nm to 1650 nm, compatible with FTB-400 platform, EXFO




Spectral Measurement
Wavelength range (nm): 1250 to 1650
Wavelength uncertainty (nm): ±0.05
Reference: Internal
Resolution bandwidth (FWHM)(nm): ≤0.10
Wavelength repeatability 2σ(nm): ±0.005

Power Measurement
Dynamic range (dBm) (per channel): –65 to 23 dB
Maximum total safe power (dBm): 29
Absolute power uncertainty (dB): ±0.6 (0.4 typical)
Power repeatability 2σ(dB): ±0.1

Optical Measurement
Optical rejection ratio at 1550 nm (dB)
                   at 0.2 nm (25 GHz): 31 (35 typical)
                   at 0.4 nm (50 GHz): 40 (45 typical)

Channel spacing: 33 to 200 GHz CWDM
PDL at 1550 nm (dB): ±0.1
ORL (dB): >37
