front1 Simple Fiber Optic Audio
Authors: Ž. Popović, J. Bajić
2019 03 29 172747

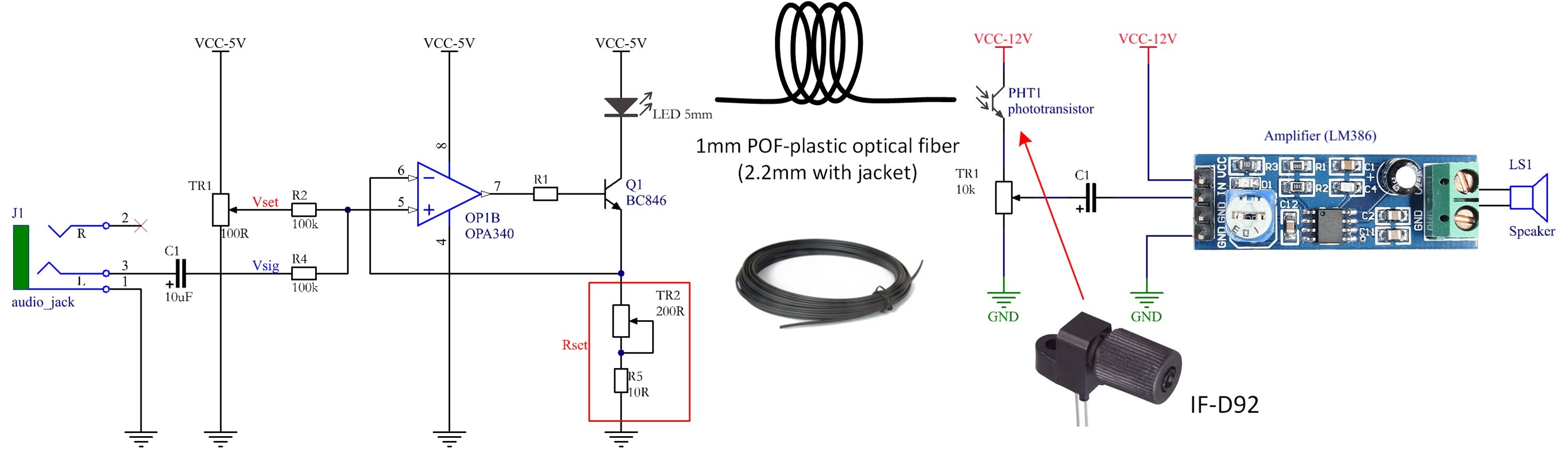

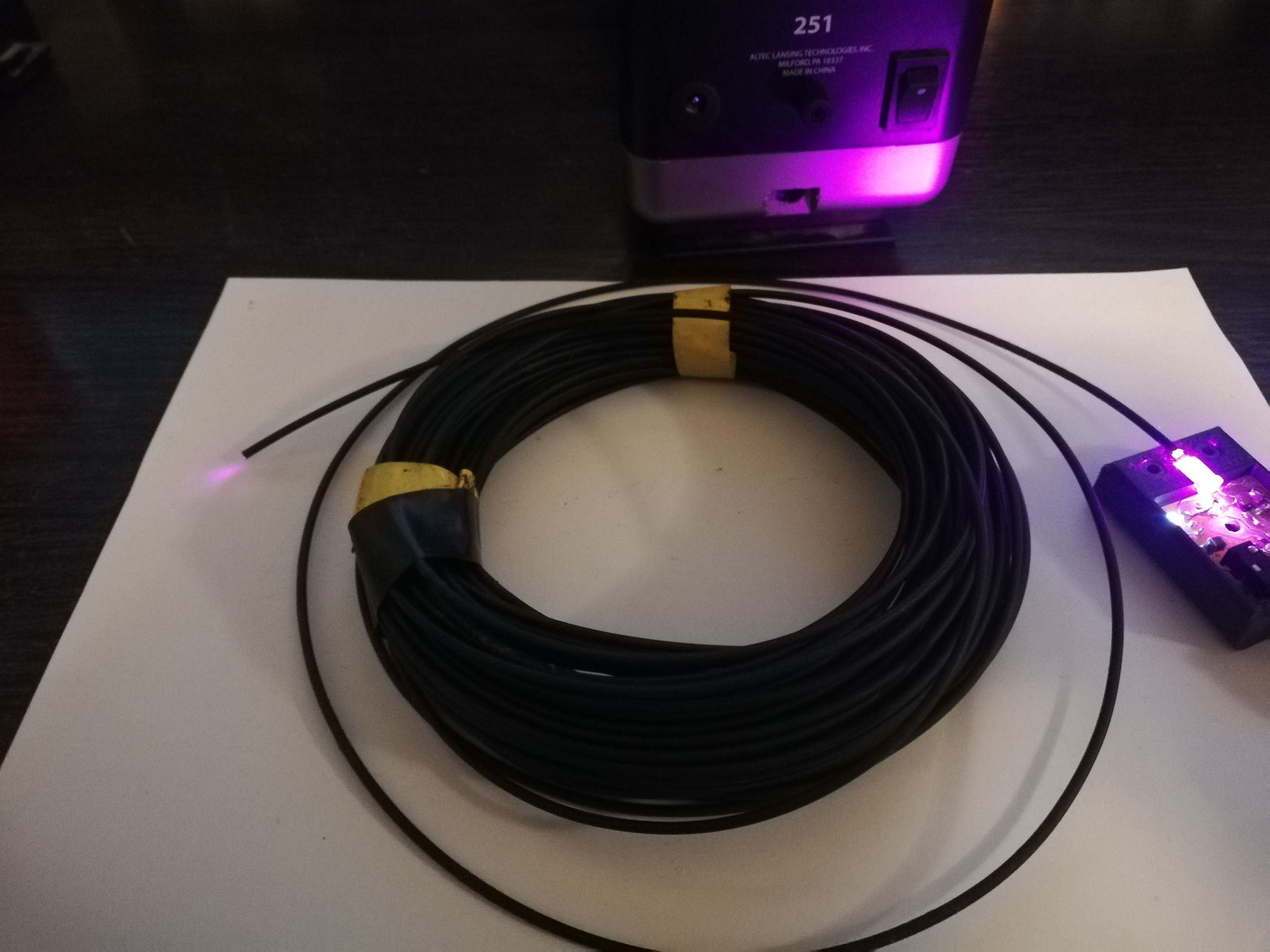

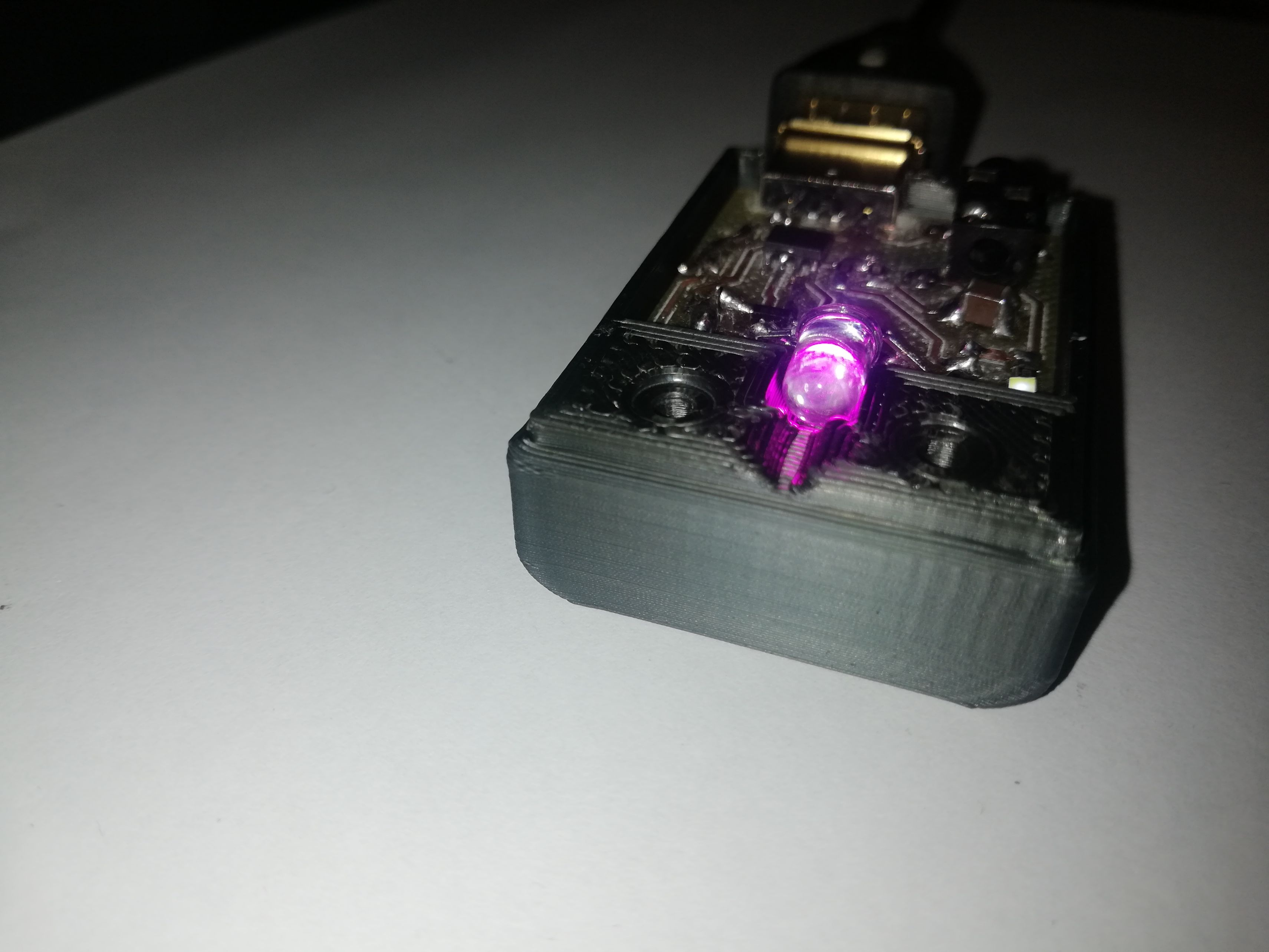

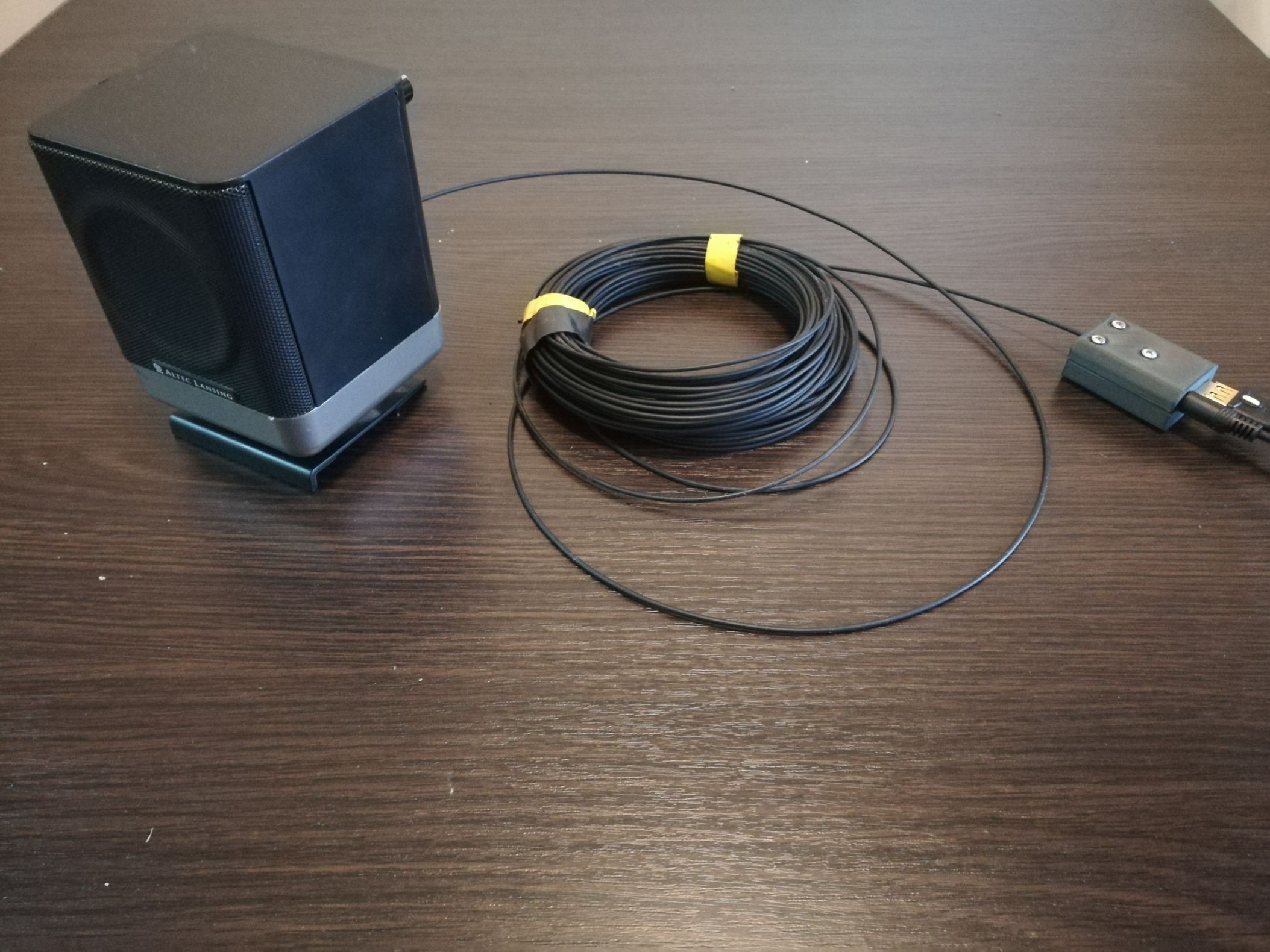

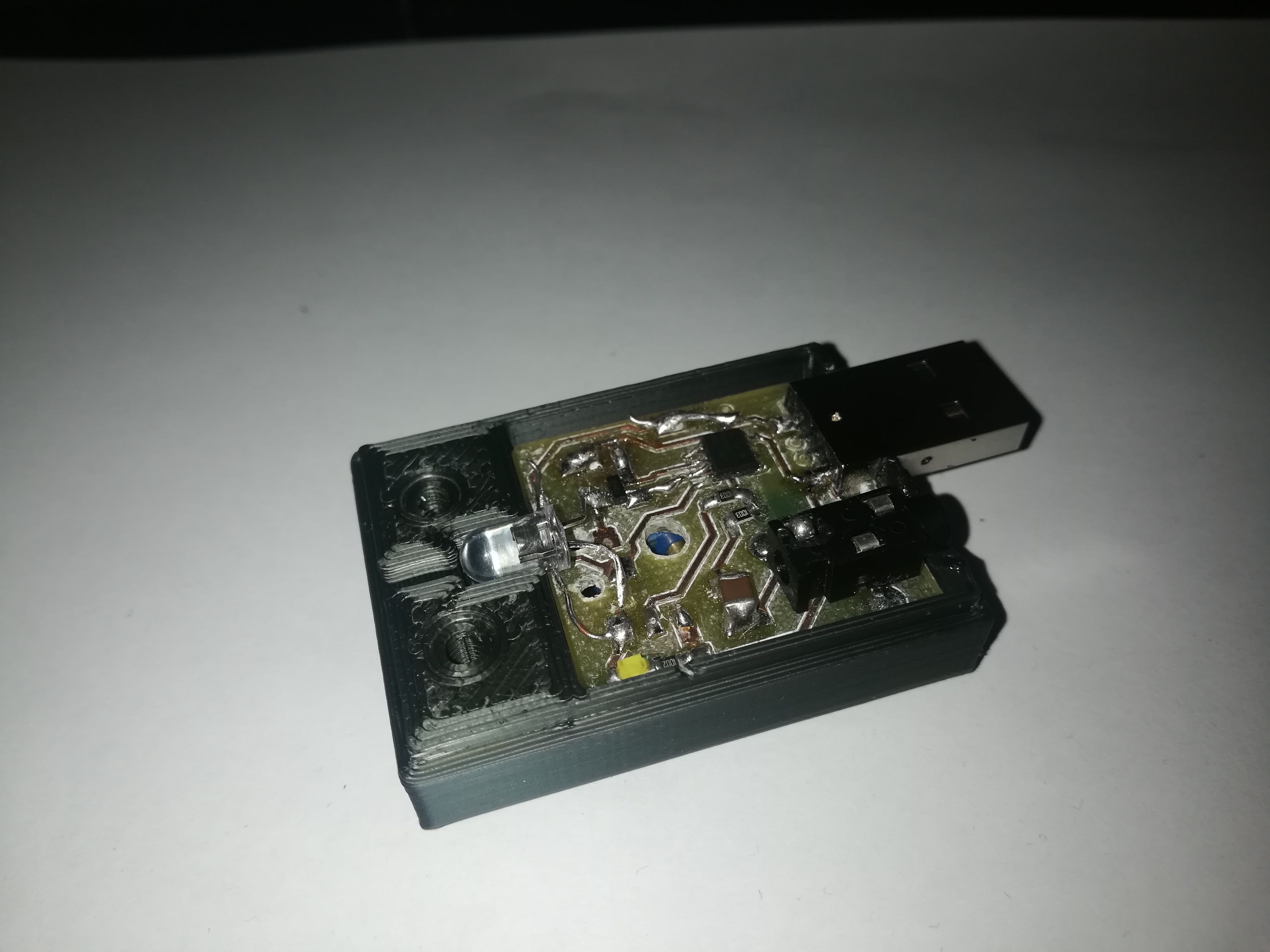

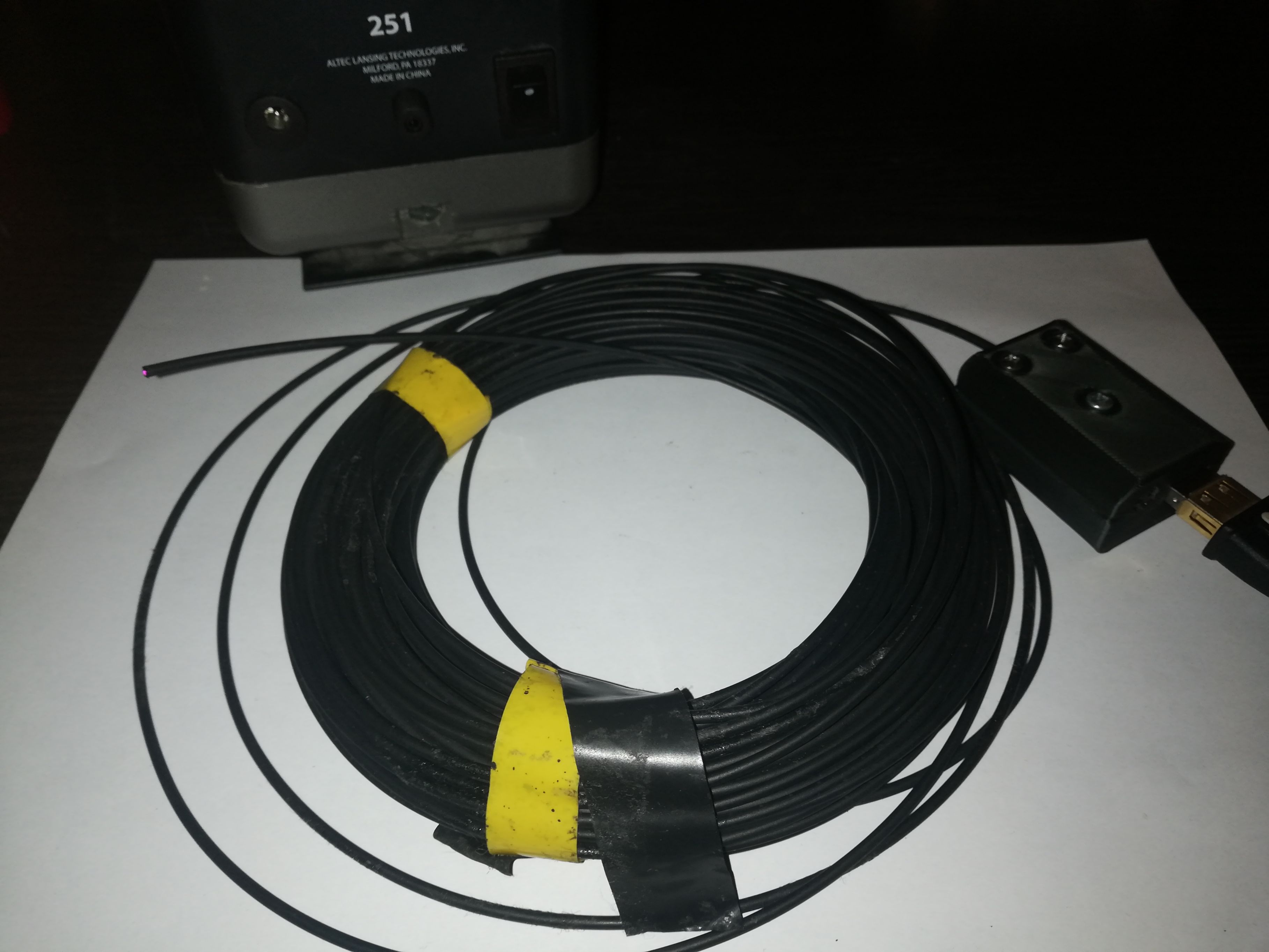

This project demonstrates a simple audio signal transmission through optical fiber. This project was a 10 points assigement from the course of Optoelectronics. On figure below photo of the project schematic is given. Optical fiber used in this project was 20 m long plastic optical fiber (POF) MH-4001. Optical transmitter uses a standard 5 mm LED. Receiver part consists of IF-D92 phototransistor from Industrial Fiber Optic and LM386 audio amplifier module.



PROJECT FILES&DOCS:

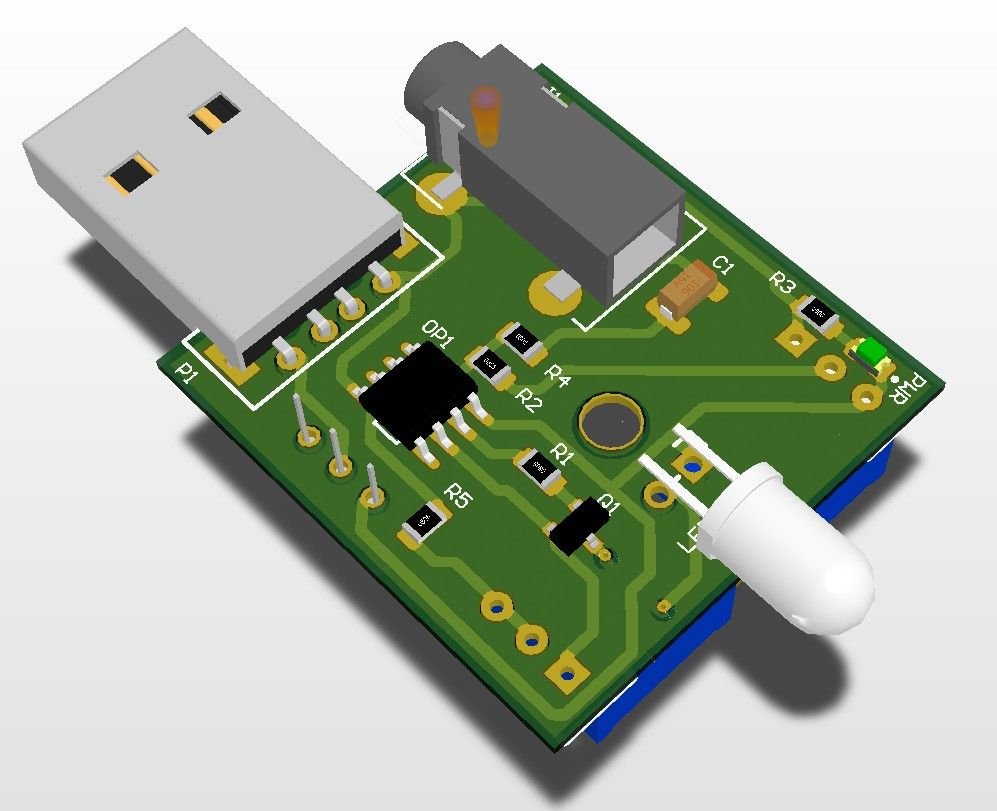

 - Project schematic and pcb: sch&pcb

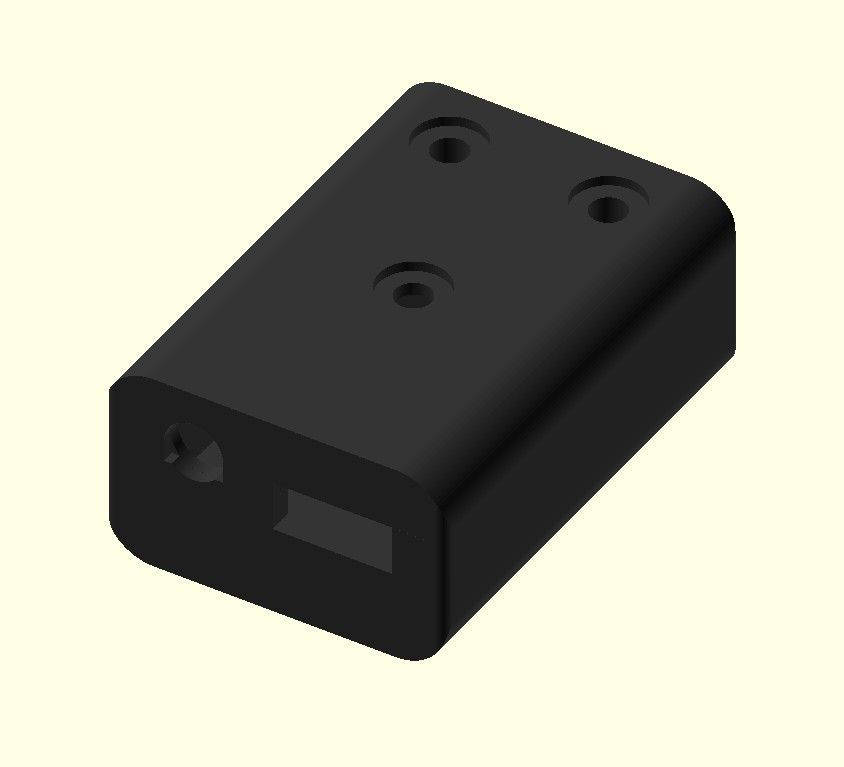

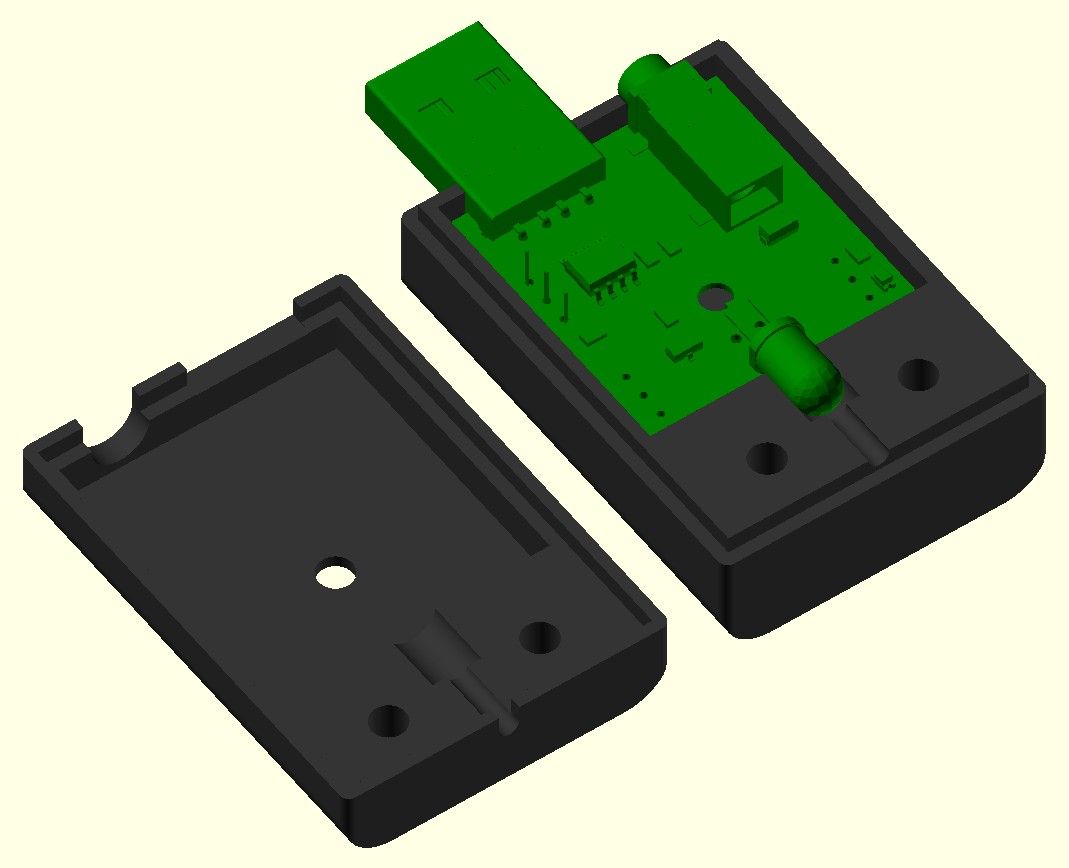

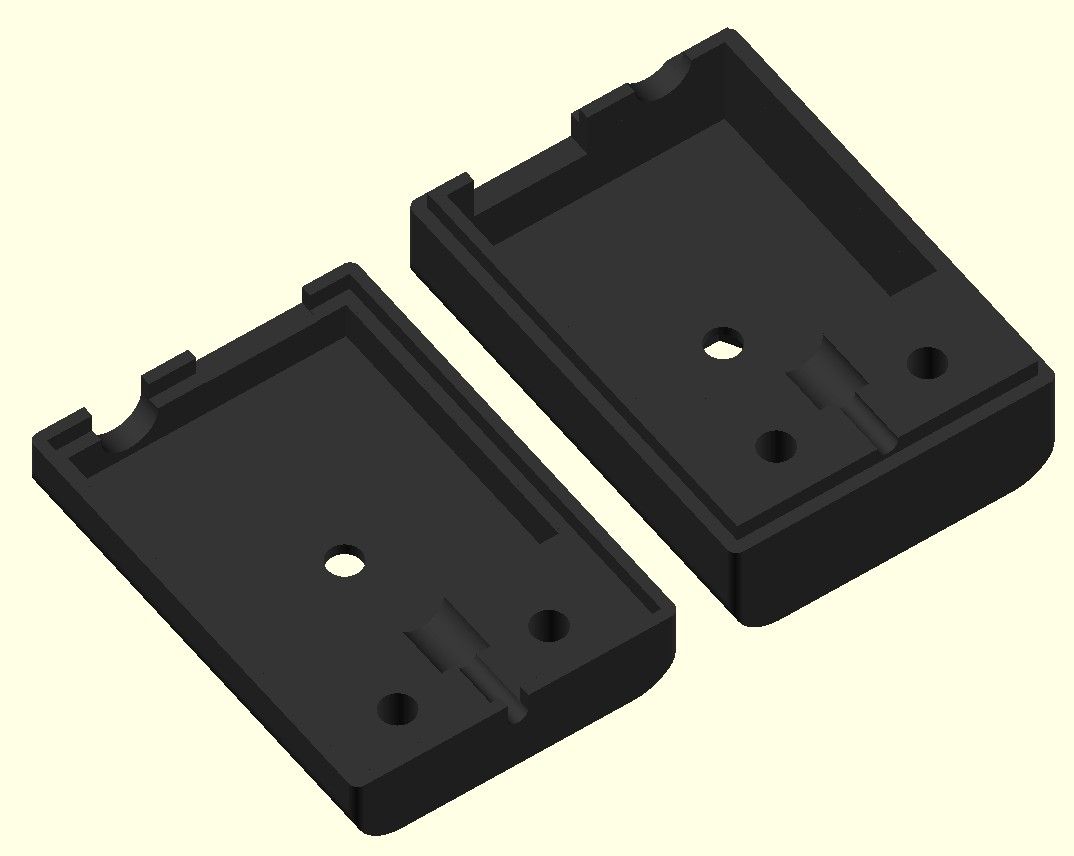

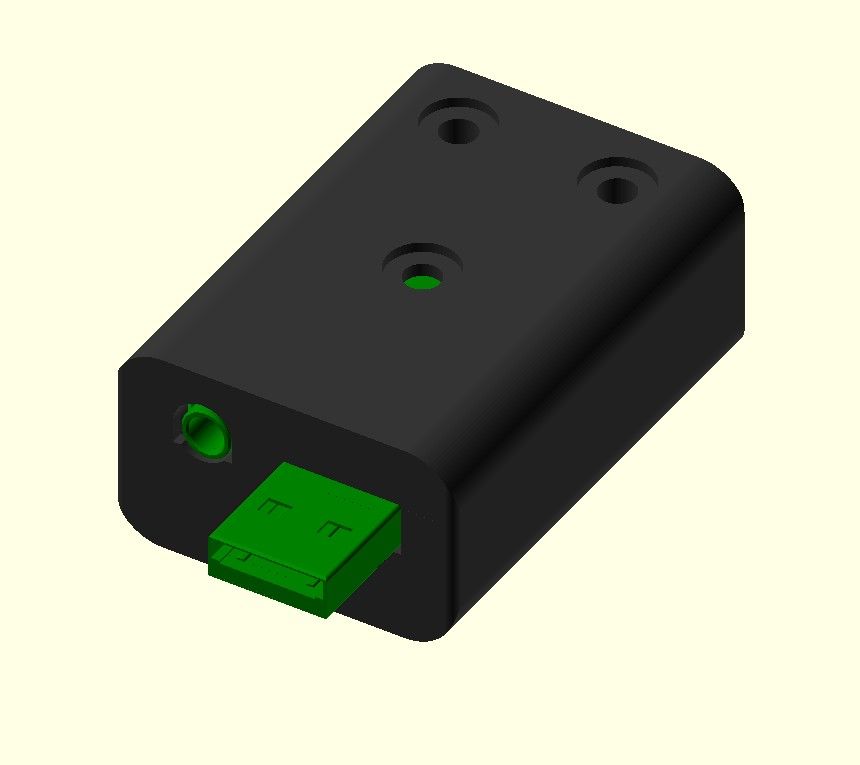

 - Fiber-optic transmitter box model on thingiverse: model
 - Demo video on youtube: video
 - Optical fiber used in this project: MH-4001
 - Phototransistor used in this project: IF-D92

IMAGE GALLERY:

  • 2019-06-03_1308132019-06-03_130813
  • 2019-06-03_1353002019-06-03_135300
  • 2019-06-03_1353242019-06-03_135324
  • 2019-06-03_1351542019-06-03_135154
  • 2019-06-03_1351252019-06-03_135125

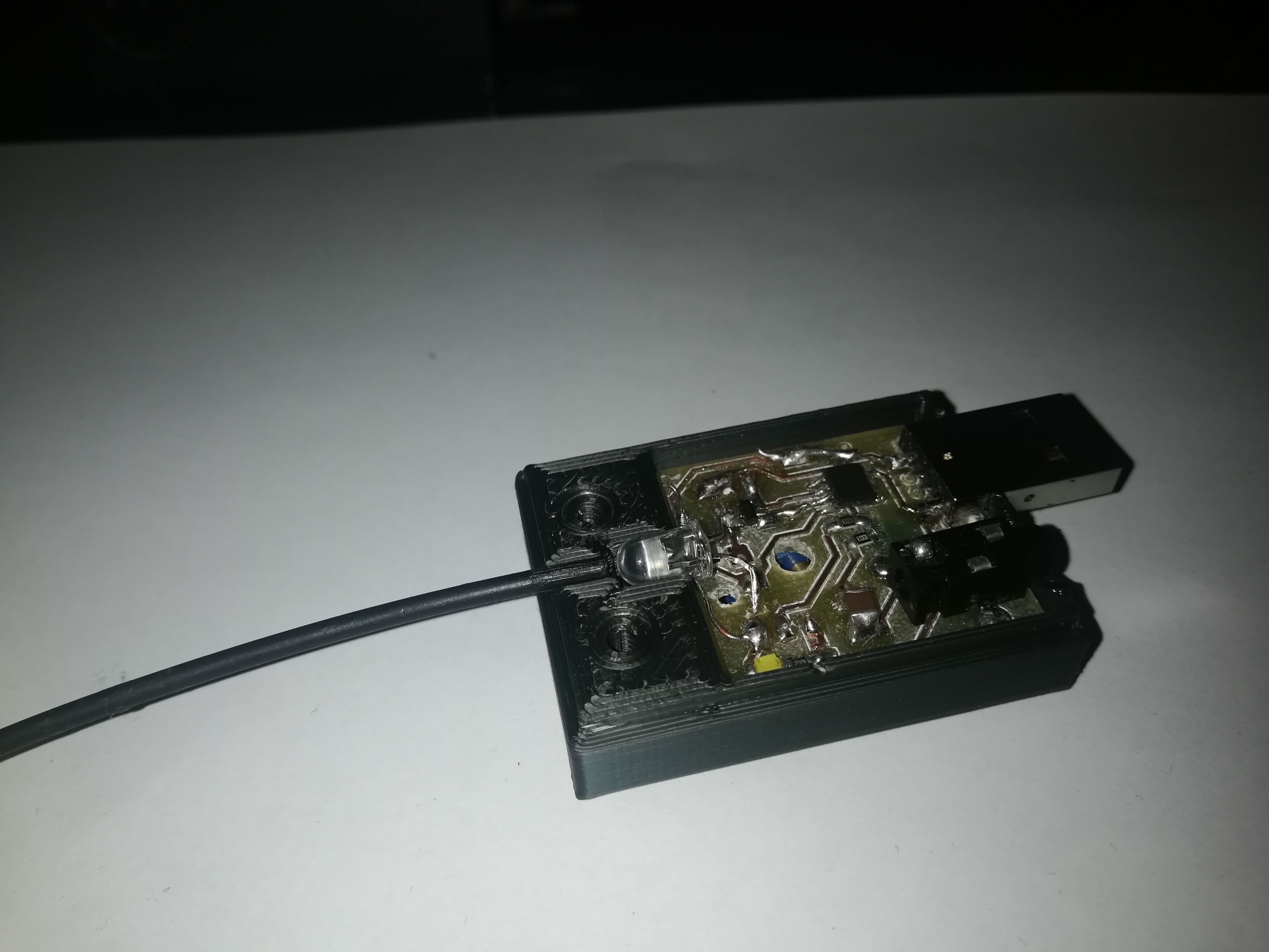

  • IMG_20190601_105438IMG_20190601_105438
  • IMG_20190601_105354IMG_20190601_105354
  • IMG_20190601_105657IMG_20190601_105657
  • IMG_20190601_105614IMG_20190601_105614

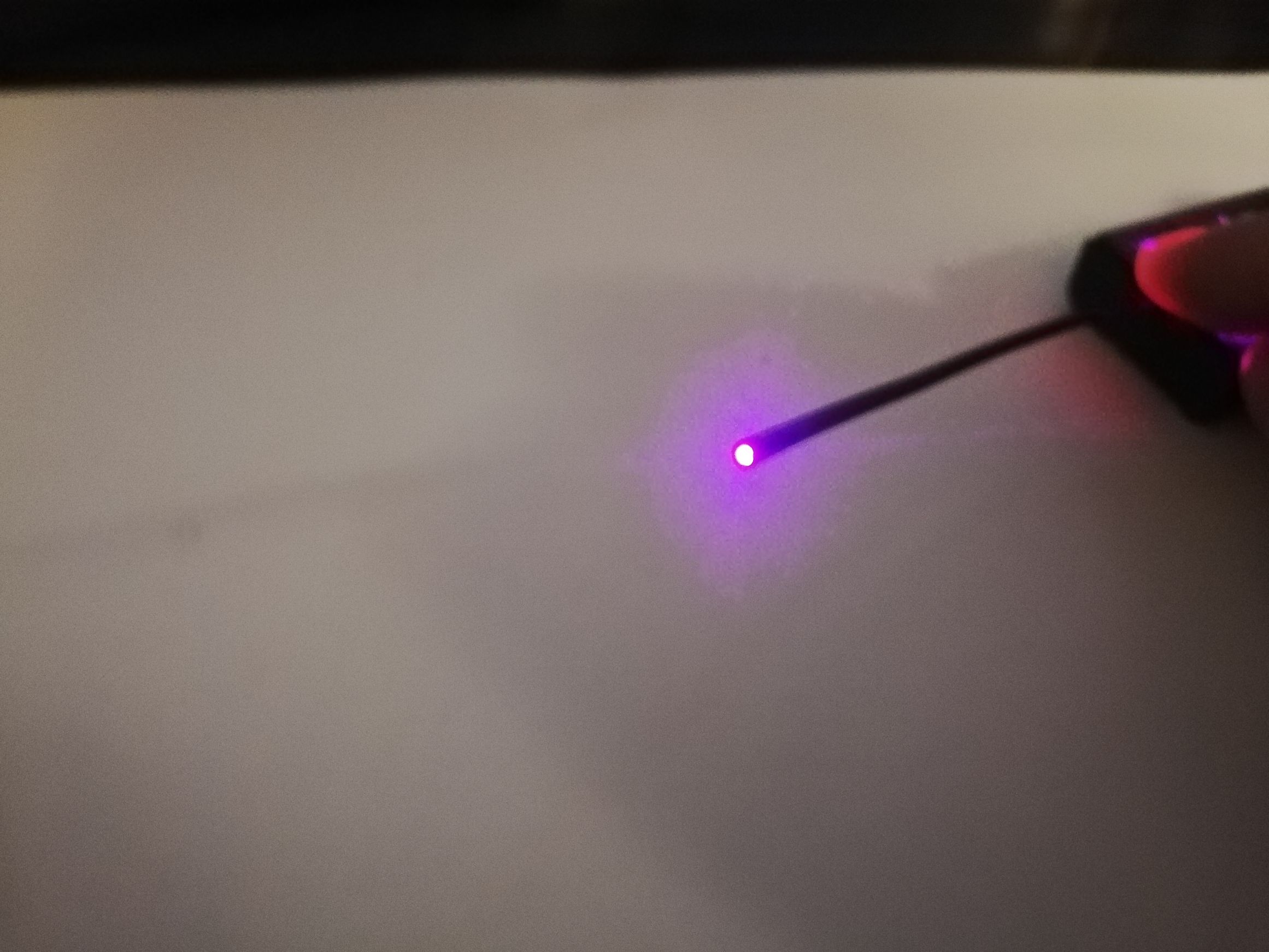

  • IMG_20190601_105900IMG_20190601_105900
  • IMG_20190601_111104IMG_20190601_111104
  • IMG_20190601_111122IMG_20190601_111122
  • IMG_20190601_111137IMG_20190601_111137
  • IMG_20190601_112924IMG_20190601_112924
  • IMG_20190601_111847IMG_20190601_111847
  • schsch

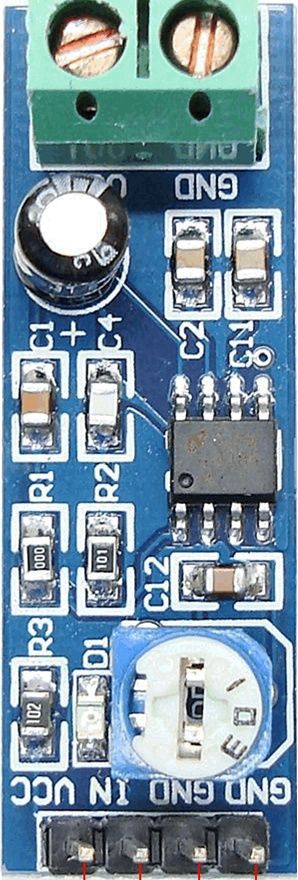

  • LM386LM386
  • IMG_20190601_120655IMG_20190601_120655

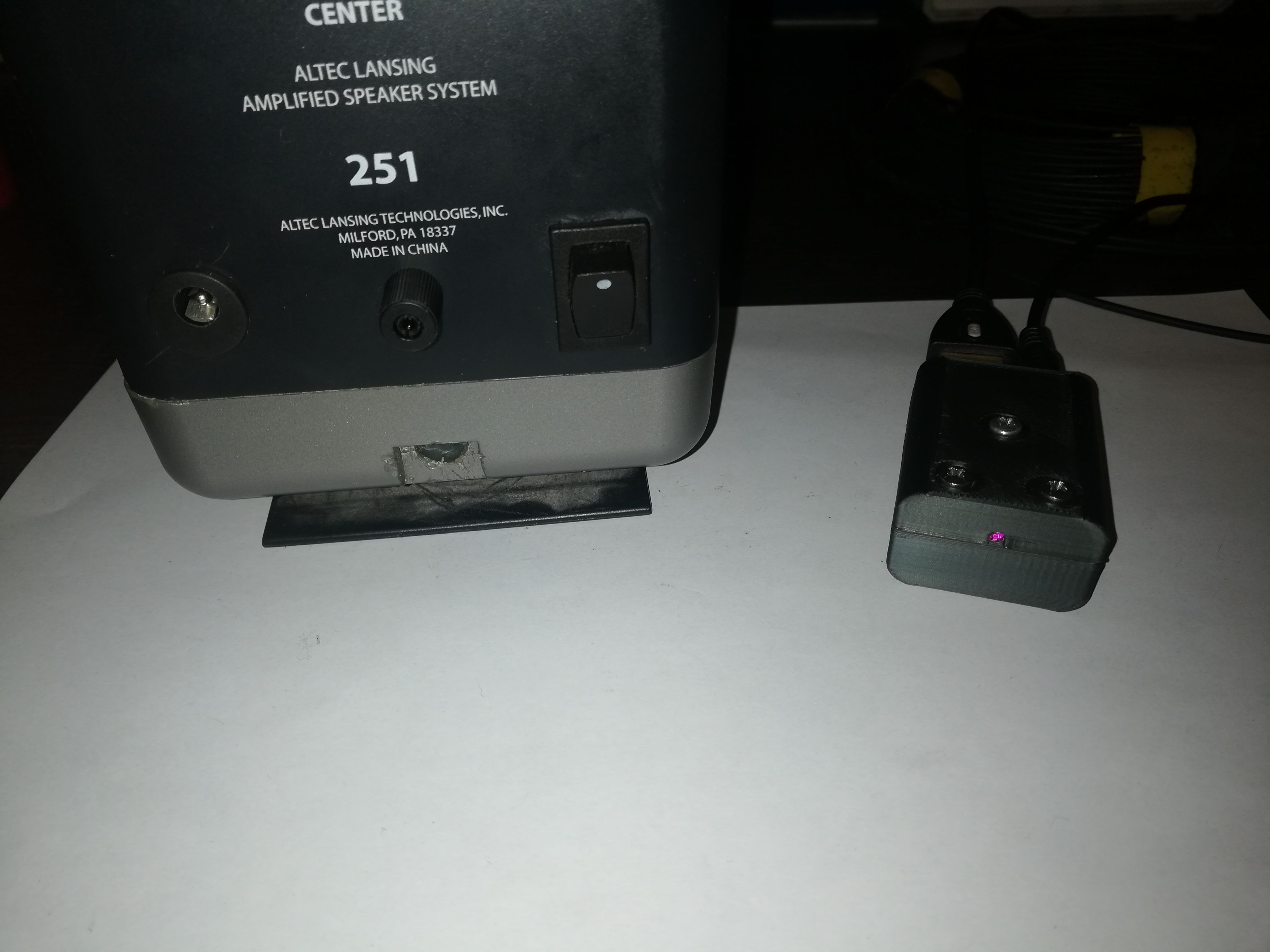

  • IMG_20190601_113218IMG_20190601_113218

VIDEO GALLERY:
