front FT800 ConnectEVE Demo
Authors: J. Bajić , B. Batinić
2019 03 29 172747

This is a demo project for FT800 embedded graphics controller by FTDI Chip. Project is based on MINI-32 for PIC32MX small development board and ConnectEVE display board with FT800 controller, both by Mikroelektronika. FT800 graphics controller integrates display, audio and touch onto a low cost, easy-to-use, single-chip solution.

mini32      eve      sd

Demo project is built using following:

 - MPLAB X IDE (5.15) + XC32 (v1.11) by Microchip
 - mikroBootloader – Free and simple application by Mikroelektronika for programing MCU with a preloaded USB-HID bootloader.
 - Custom built FT800 driver library
 - ChaN's FatFS library for SD Card support.

Custom built FT800 library can be easily ported to other platform (by changing FT800_Port source and header files)

PROJECT FILES&DOCS:

- FT800 From the Ground Up: pdf
- FT800 Series Programmer Guide: pdf
- FT800 Audio Primer: pdf
- Demo project on github: source
- Demo project schematic: sch
- Demo project on youtube: video
- SD Card Content used in demo project: files



IMAGE GALLERY:

  • IMG_20190903_230916IMG_20190903_230916
  • IMG_20190903_230923IMG_20190903_230923
  • IMG_20190903_230941IMG_20190903_230941
  • IMG_20190903_230931IMG_20190903_230931
  • IMG_20190903_230956IMG_20190903_230956
  • IMG_20190903_231021IMG_20190903_231021
  • IMG_20190903_231007IMG_20190903_231007

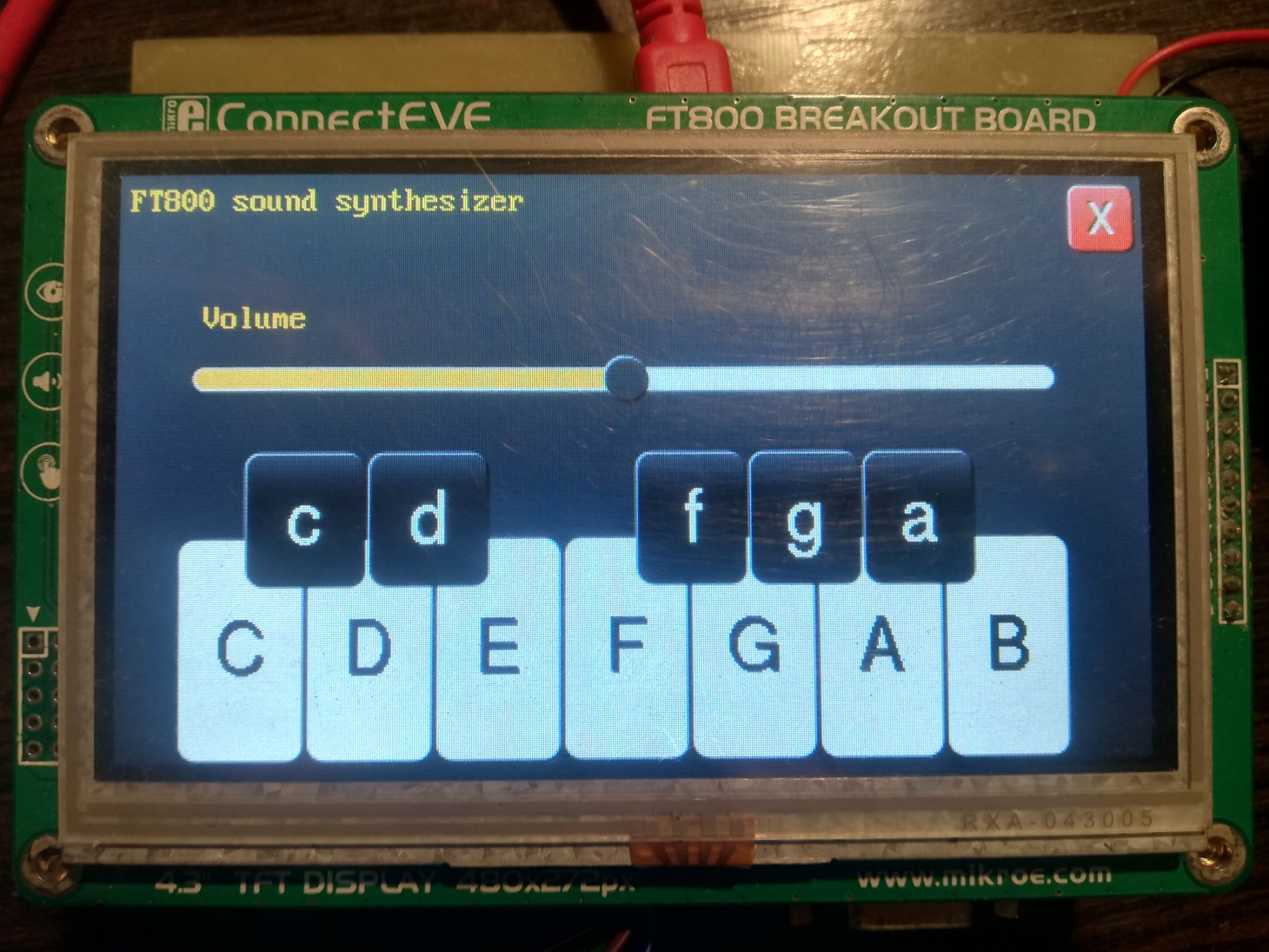

  • IMG_20190903_231032IMG_20190903_231032
  • schematicschematic
  • IMG_20190903_231257IMG_20190903_231257

VIDEO GALLERY:
