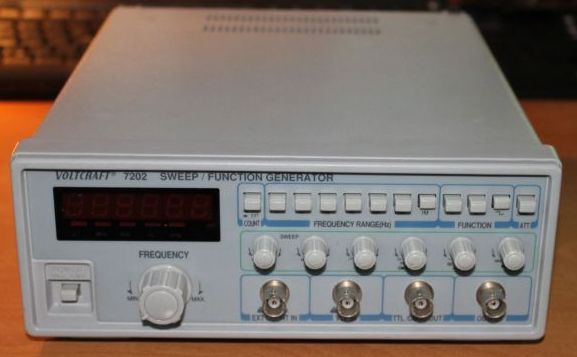

7202, sweep/function generator, VOLTCRAFT


Main: Sweep, Function and pulse Generator.
Versatile wave forms for Sine, Triangle, Ramp, Pulse, Sawtooth and DC;
0.02 Hz - 2 MHz Frequency Output in 7 Range.
Built in 6 Digit Internal and External Counter Display (10 MHz).
Internal and External linear Sweep Control from  1:1 to 100:1.
Low distor tion for Sine waveform less than 1% at 10Hz to 100kHz.
Variable Symmetry for generating Saw tooth and Pulse waveforms.
TTL and CMOS leveled Square wave form output.
Variable DC Offset control.
Variable Output level control with 20dB Attenuator and Amplitude control.
