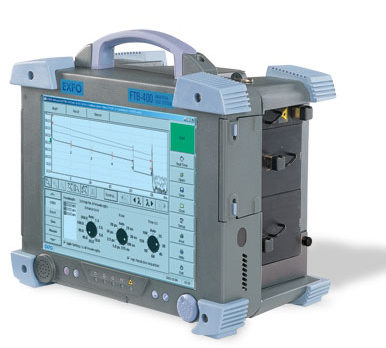

FTB 400 1HR.jpg

FTB-400, Universal test system, EXFO



Display: Touchscreen, color, 800 x 600 TFT 307 mm
Interfaces
Serial RS-232
Parallel port
External monitor
Two USB 1.1 ports
Infrared (IrDA) port
Audio microphone In 3.5 mm
Audio speaker Out 3.5 mm
Two PCMCIA type II or one PCAMCIA type III
Storage
Internal 80 GB hard drive minimum (over 750 000 OTDR test files)
Internal 3.5 in 1.44 MB fl oppy drive
External USB read/write CD-ROM (optional)
Flash memory cards (256 MB) (optional)
NTFS file system
Batteries: Rechargeable NiMH battery pack (two batteries for two-slot and four-slot receptacle
Power supply: 100–240 VAC, 50/60 Hz and 12–24 VDC for the two-slot (GP-402) and 100–240 VAC, 50/60 Hz and 24 VDC for the four-slot
(GP-404) module receptacle
