7269 SLS201 Light Source 10

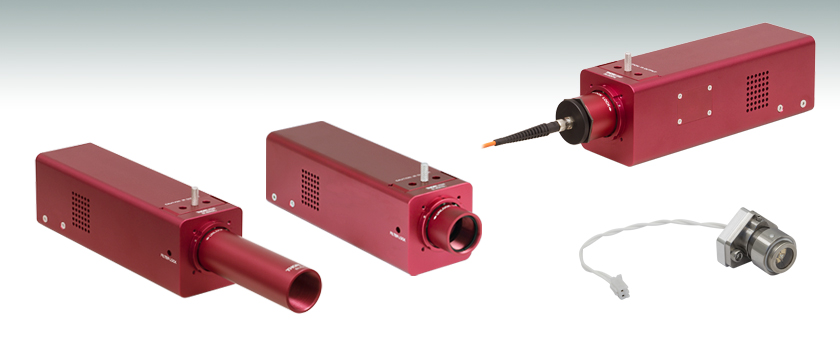

SLS201L - Stabilized Fiber-Coupled Light Source, 360 - 2600 nm



Wavelength Range: 360 - 2600 nm
Peak Wavelength: 1000 nm
Bulb Electrical Power: 9 W
Output Coupling: Fiber Coupled (SMA) and Free Space
Coupled Optical Power: 10 mW
Included Fiber Patch Cable: M28L01
Output Power Stability: <0.05%
Output Power Drift per Hour: 0.01%
Output Power Drift per °C: 0.1%
Color Temperature: 2796 K
Color Temperature Stability: ±15 K
Included Power Supply: Universal AC/DC Converter, 90 - 264 VAC, 47 - 63 Hz
