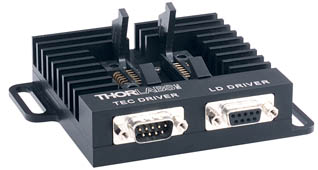

LM14S2, Universal 14 Pin Butterfly LD Mount, Thorlabs


Laser Diode Mount for 14-Pin Butterfly Packages
Zero Insertion Force (ZIF) Mounting Socket
Type 1, Type 2, Type 2 with Bias-T, and User-Defined Pinout Configurations
LED Indicates When Laser is Enabled

Maximum Laser Current: 5 A
Polarity of Laser Diode: Anode Ground
Polarity of Monitor Diode: Floating
Maximum TEC Current: 5 A
Temperature Sensor: Thermistora
Temperature Rangeb: 0 to 70 °C
Temperature Coefficient of Heat Sink: 3 °C/Wabled
