OV PM

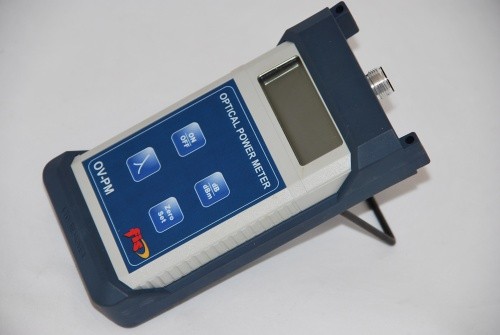

OV-PM, Optical power meter, FIS



Wavelengths: 850/1310/1550nm
Resolution: 0.1 dB
Detector: 2mm Germanium
Dynamic Range: -65 to +5 dB
Accuracy: ±.3 dB
Operating Temp.: -10º to +50º Celcius
Battery: 9V Alkaline
Dimensions: 6 1/4” L x 3 1/4” W x 1 1/4” D

Features:
Zero Set Reference Storage Ability at Each Wavelength (1310 & 1550nm)
2mm Germanium Photodiode
Auto Shut Off
70-Hour Battery Life
Optional AC Power Supply
Low Battery Indicator
Protective Rubber Boot

Wavelengths: 850/1310/1550nm
Resolution: 0.1 dB
Detector: 2mm Germanium
Dynamic Range: -65 to +5 dB
Accuracy: ±.3 dB
Operating Temp.: -10º to +50º Celcius
Battery: 9V Alkaline
Dimensions: 6 1/4” L x 3 1/4” W x 1 1/4” D
